Theatre Specs

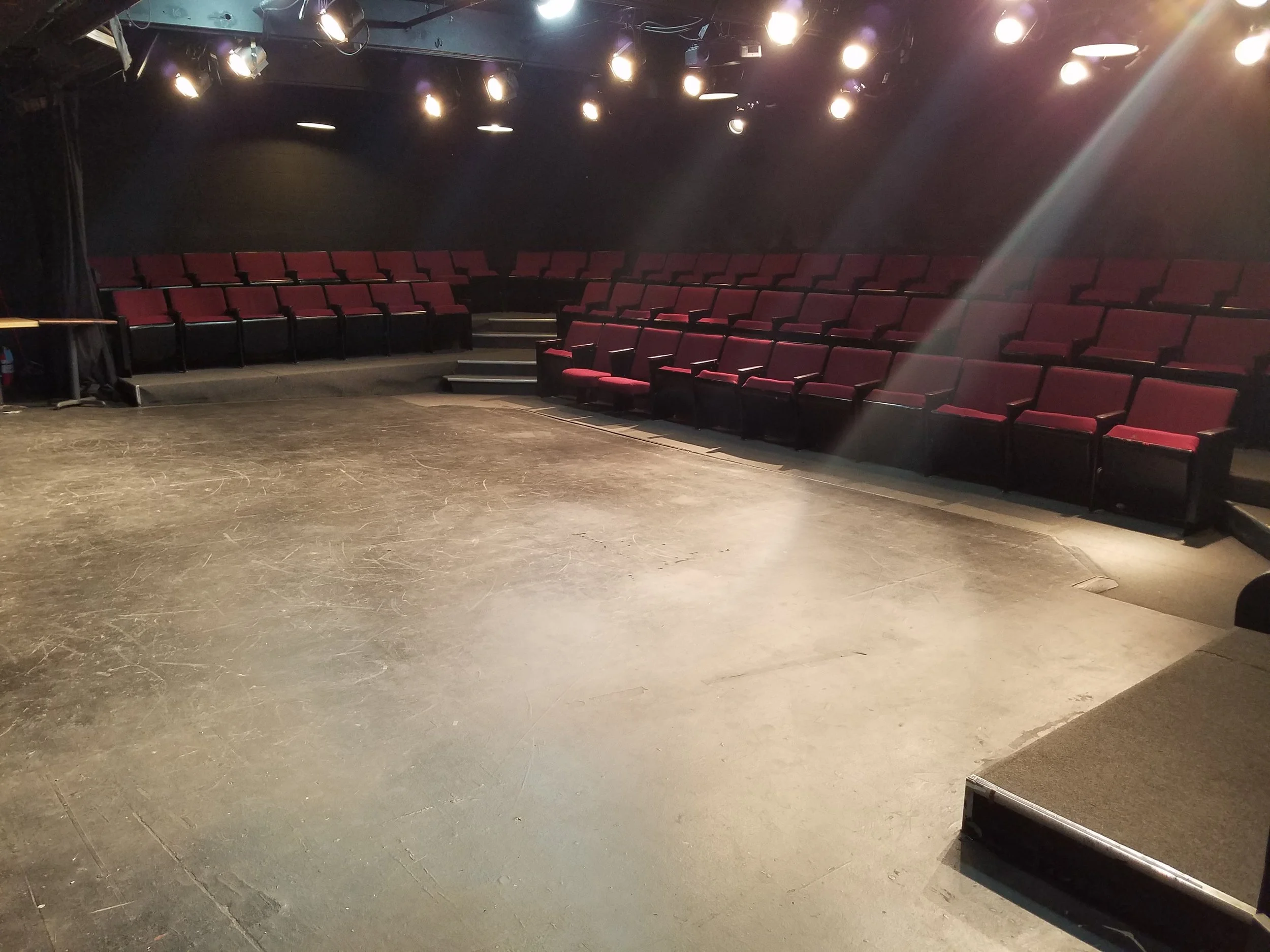

Main Stage

The Zephyr stage configuration is 3/4 round with 74 fixed seats. 11 chairs may be added for a max seating capacity of 85. Click HERE for ground-plan pdf , HERE for the grid plot pdf, and HERE for the house light plot.

The height to the grid is 10’10” and the height to the lowest point under the beam/header is 9’7”

Please NOTE the stage width of 26’6” is now 21’6” due to steps being installed on either side of the stage.


Light Board: ETC 24/48 Board

Sound Board: Yamaha MG12XU Board

Projector: 4K Epson Powerlite 4855WU  (Additionally available for rent)

Dimmers: ETC Sensor 24 x 2.4KW Dual Stage Pin Output

Lighting Instruments (subject to change)

  • 12- Fresnels

  • 5- 6x9 Altman

  • 3- ETC Source 4 (lens type below)

  • 4- Parcans

  • 9- Barn Doors

  • 2- 50 Degree Source 4 Lens

  • 1- 26 Degree Source 4 Lens

  • 1- 19 Degree Source 4 Lens

Additionally Available for Rent:

  • 3 Blizzard LED Par Hex Fixtures (3 for $150 flat fee)

  • 3 ADJ LED 5p Par Hex Fixtures (3 for $150 flat fee)

  • 4 Handheld wireless Microphones (All for $50 flat fee)

Reception Area

The Zephyr Theatre now has a reception area in the rear patio for post-show receptions! Please inquire within your rental about using the reception area.
